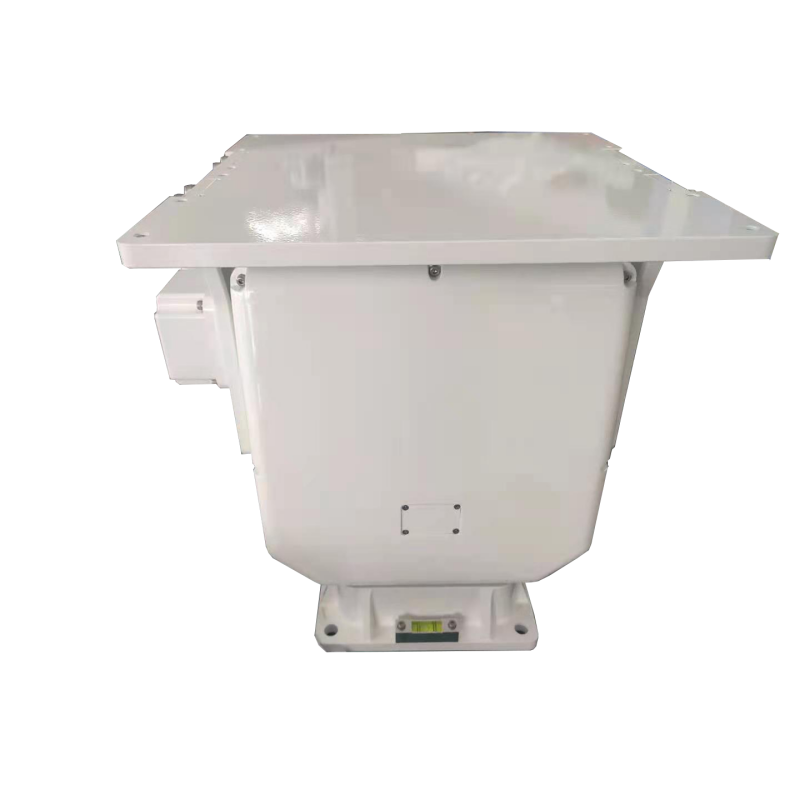

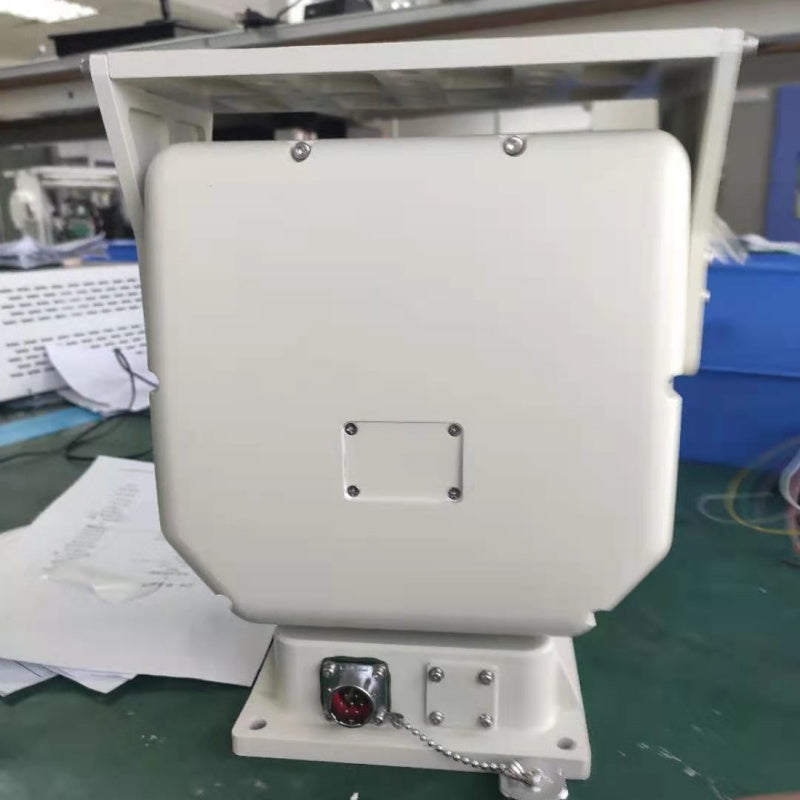

Medium-Duty Pan-Tilt Head VT-M25A
VT-M Series Medium-Duty Pan-Tilt Heads
"VT-M25A/M25 Product Overview "
² High repeatability, up to ±0.1°;
² Built-in incremental encoder for closed-loop control;
² Housing made of high-strength die-cast aluminum alloy;
² Features a worm gear drive (enclosed type) with self-locking capability in the event of power failure;
² Optional network-specific slip ring available for 100 Mbps or 1 Gbps network transmission;
² Can be equipped with a built-in serial server to enable network control;
² Supports data feedback functions for pan/tilt position, camera focal length, and focus values;
² Supports adaptive preset positions for various lenses;
² Supports custom protocols;
Detailed Technical Specifications:
|
Model |
VT-M25A |
VT-M25 |
|
Rotation Speed |
Horizontal: 0.01°–30°/s; Pitch: 0.01°–20°/s; |
Horizontal: 0.01°–30°/s; Pitch: 0.01°–15°/s; |
|
Rotation Angle |
Horizontal: 0–360° continuous rotation (optional limited rotation); Pitch: -60° to +60° (angle customizable); |
|
|
Preset positions |
256 (expandable) |
|
|
Repeatability |
±0.05° |
|
|
Angular resolution |
0.01° |
|
|
Position feedback |
Supported |
|
|
Focal length feedback (optional) |
Supported |
|
|
Auxiliary Switch (Optional) |
2 sets, passive, normally open |
|
|
Lens Preset Positions (Optional) |
Supported; compatible with various lenses such as FUJINON, COMPUTAR, and KOWA |
|
|
Lens Control Speed (Optional) |
Zoom and focus control speeds are continuously adjustable |
|
|
Auto patrol |
8 routes, with 10 waypoints per route (expandable) |
|
|
Auto-return |
Automatic return time can be set from 1 to 60 minutes |
|
|
Auto scan |
1 route (expandable) |
|
|
Salt fog resistance (optional) |
After 48 hours of continuous spraying at a pH of 6.5–7.2, the machine operates normally with no visible changes to the surface |
|
|
Communication protocol |
PELCO_D (supports custom protocols) |
|
|
Communication Baud Rate |
9600 bps (configurable to 2400/4800/9600/19200 bps) |
|
|
Communication Interface |
RS485 (RS422/RS232/RJ45 100Mbps or Gigabit Ethernet optional) |
|
|
Input Power Range |
AC/DC 24 V (customizable) |
|
|
Operating/Standby Power Consumption |
≤40W/3W |
≤50W/3W |
|
Operating Temperature |
-25°C to +55°C, 90% ±3%, non-condensing (optional low temperature: -40°C) |
|
|
Storage Temperature |
-40°C to +65°C |
|
|
Load |
≥25 kg |
|
|
Loading method |
Top-loading/Side-loading |
|
|
Dimensions (L×W×H) |
263 mm × 170 mm × 276 mm |
266 mm × 120 mm × 296 mm |
|
Total Weight |
12 kg |
10.5 kg |
|
Drive type |
Enclosed worm gear drive |
Open worm gear drive |
|
Protection rating |
IP66 |
|
|
MTBF |
≥5000 h |
|
|
MTTR |
≤30 min |
|
