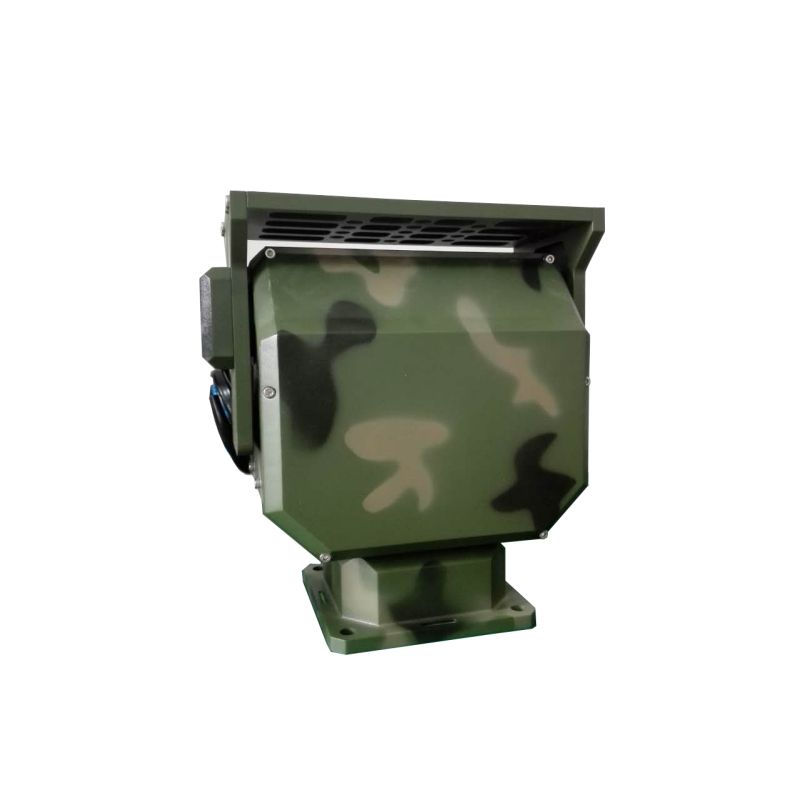

VT-H Series Heavy-Duty Pan-Tilt Heads
"VT-H50A/H50 Product Overview"
High repeatability, up to ±0.1°;
Built-in incremental encoder for closed-loop control;
Housing made of high-strength die-cast aluminum alloy;
Worm gear drive ensures self-locking in the event of power failure;
Optional network-specific slip ring available for 100 Mbps or 1 Gbps network transmission;
Can be equipped with a built-in serial server for network control;
Supports data feedback functions for pan/tilt position, camera focal length, and focus values;
Supports adaptive preset positions for various lenses;
Supports custom protocols;
Detailed Technical Specifications:
|
Model |
VT-H50A |
VT-H50 |
|
|
Rotation Speed |
Horizontal: 0.01°–30°/s; Pitch: 0.01°–15°/s |
||
|
Rotation Angle |
Horizontal: 0–360° continuous rotation (optional limited rotation); Pitch: -60° to +60° (angle customizable) |
||
|
Preset Positions |
200 (expandable) |
||
|
Repeatability |
±0.1° |
||
|
Angular resolution |
0.01° |
||
|
Position feedback |
Supported |
||
|
Focal length feedback (supported) |
Supported |
||
|
Auxiliary Switch (Supported) |
2 sets, passive, normally open |
||
|
Lens Preset Positions (Supported) |
Supported; compatible with various lenses such as FUJINON, COMPUTAR, and KOWA |
||
|
Lens Control Speed (Supported) |
Zoom and focus control speeds are continuously adjustable |
||
|
Auto patrol |
8 routes, with 10 waypoints per route (expandable) |
||
|
Auto-return |
Automatic return time can be set from 1 to 60 minutes |
||
|
Auto scan |
1 route (expandable) |
||
|
Salt fog resistance (optional) |
After 48 hours of continuous spraying at a pH of 6.5–7.2, the machine operates normally with no visible changes to the surface |
||
|
Communication protocol |
PELCO_D (supports custom protocols) |
||
|
Communication Baud Rate |
9600 bps (configurable to 2400/4800/9600/19200 bps) |
||
|
Communication Interface |
RS485 (RS422/RS232/RJ45 100Mbps or Gigabit Ethernet optional) |
||
|
Input Power Range |
AC/DC 24 V (customizable) |
||
|
Operating/Standby Power Consumption |
≤70W/3W |
||
|
Operating temperature |
-25°C to +55°C, 90% ±3%, non-condensing (optional low-temperature version: -40°C) |
||
|
Storage Temperature |
-40°C to +65°C |
||
|
Load |
≥50 kg |
||
|
Loading method |
Top load/Side load |
||
|
Dimensions (L×W×H) |
336 mm × 185 mm × 361 mm |
||
|
Total weight |
22 kg |
||
|
Drive Type |
Enclosed worm gear drive |
Open worm gear drive |
|
|
Protection rating |
IP66 |
||
|
MTBF |
≥5000 h |
||
|
MTTR |
≤30 min |
||
