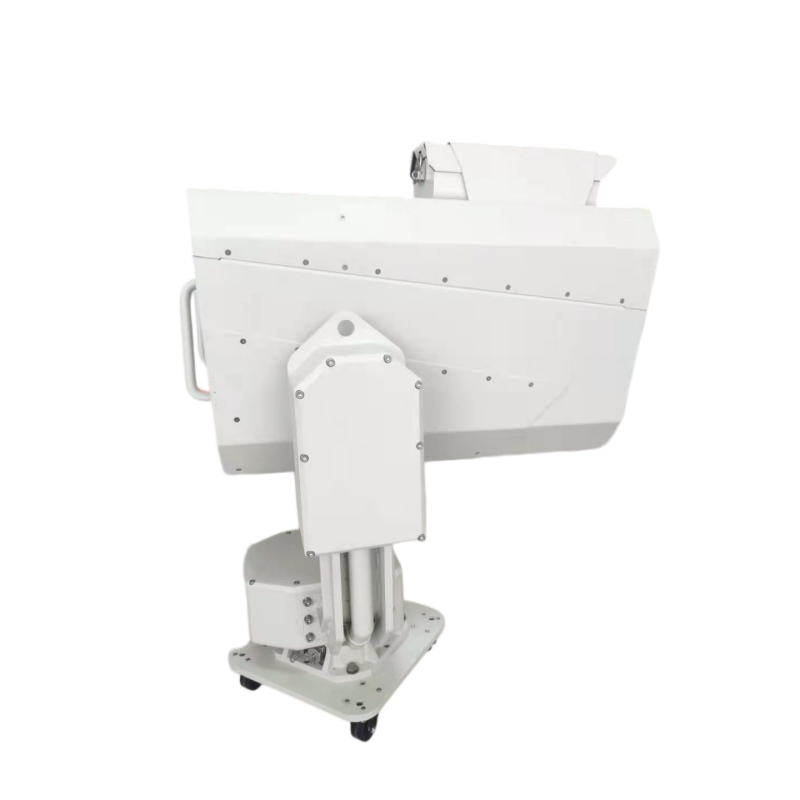

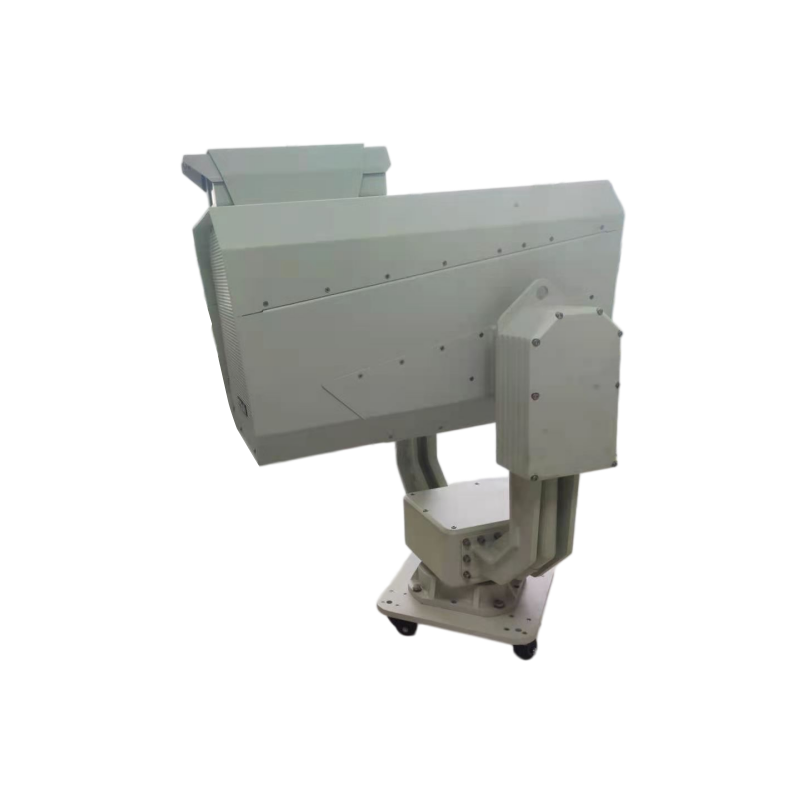

VT-UT Series U-Shaped Turntable
"VT-U800 Product Overview"
Can accommodate various devices such as sonar, photoelectric sensors, and countermeasure antennas;
Can transmit azimuth, lens focal length, and focus position in real time;
Can connect to devices such as GPS radar and electronic compasses;
Optional network-dedicated slip rings support 100 Mbps or 1 Gbps network transmission;
Can be equipped with a built-in serial server to enable network control;
Supports line scanning, positioning, and automatic return-to-home functions;
Features a professional design, with an aesthetically pleasing and robust build that withstands strong winds, salt fog, and extreme temperatures;
High repeatability positioning accuracy of the turntable, up to ±0.1°;
Supports custom protocols;
Detailed Technical Specifications:
|
Model |
VT-UT800 |
|
Rotation Speed |
Horizontal: 0.01°–15°/s; Pitch: 0.01°–8°/s (continuously variable) |
|
Rotation Angle |
Horizontal 0–360° (optional limited rotation); Pitch: -60° to +60° (pitch angle customizable) |
|
Preset positions |
200 (expandable) |
|
Repeatability |
Up to ±0.1° |
|
Positioning angle resolution |
0.01° |
|
Position feedback |
Supported |
|
Focus feedback (optional) |
Supported |
|
Auxiliary Switch (Optional) |
2 sets, passive, normally open |
|
Lens Preset Positions (Optional) |
Supported; compatible with various lenses such as FUJINON, COMPUTAR, and KOWA |
|
Lens Control Speed (Optional) |
Zoom and focus control speeds are continuously adjustable |
|
Auto patrol |
8 routes, each with 10 configurable waypoints (expandable) (expandable) |
|
Auto-return |
Automatic return time can be set from 1 to 60 minutes |
|
Auto scan |
1 route (expandable) |
|
Salt fog resistance (optional) |
After continuous spraying for 48 hours at a pH of 6.5–7.2, the machine operates normally with no noticeable changes to the surface |
|
Communication protocol |
PELCO_D (supports custom protocols) |
|
Communication Baud Rate |
9600 bps (configurable to 2400/4800/9600/19200 bps) |
|
Communication Interface |
RS485 (RS422/RS232/RJ45 100Mbps or Gigabit Ethernet optional) |
|
Input Power Range |
AC 220 V (customizable) |
|
Operating/Standby Power Consumption |
≤120W/10W |
|
Operating temperature |
-25°C to +55°C, 90% ± 3%, non-condensing (optional low temperature: -40°C) |
|
Storage temperature |
-40°C to +65°C |
|
Load |
≥45 kg |
|
Loading method |
Top-loading/Side-loading |
|
Dimensions (L×W×H) |
745 mm × 300 mm × 734 mm (span can be customized upon request) |
|
Total weight |
55 kg |
|
Drive mechanism |
Worm gear drive |
|
Protection rating |
IP66 |
|
MTBF |
≥5000 h |
|
MTTR |
≤30 min |
