Rail Transit Series Pan-Tilt Units

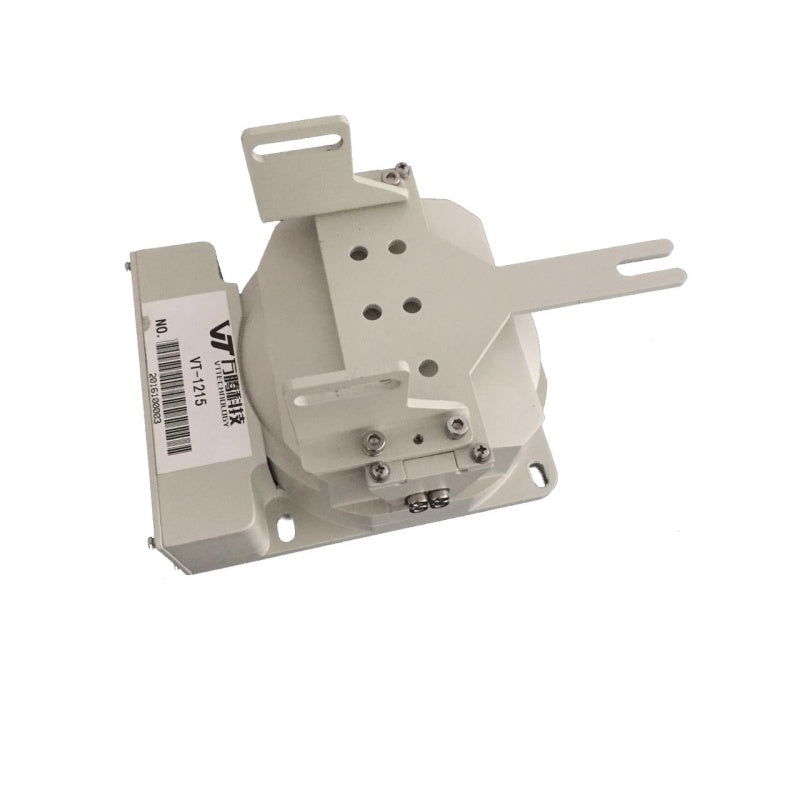

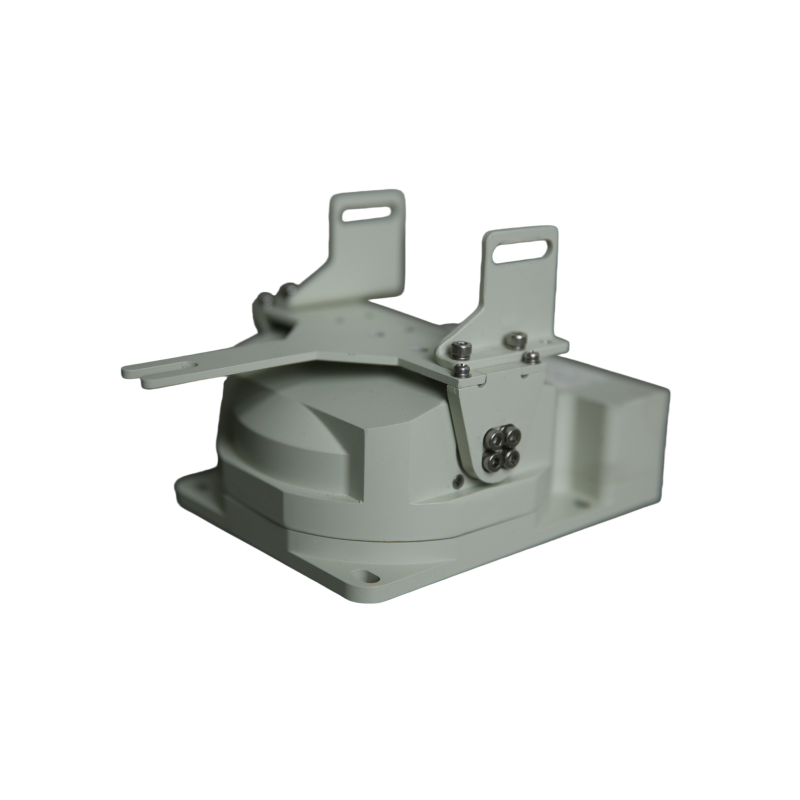

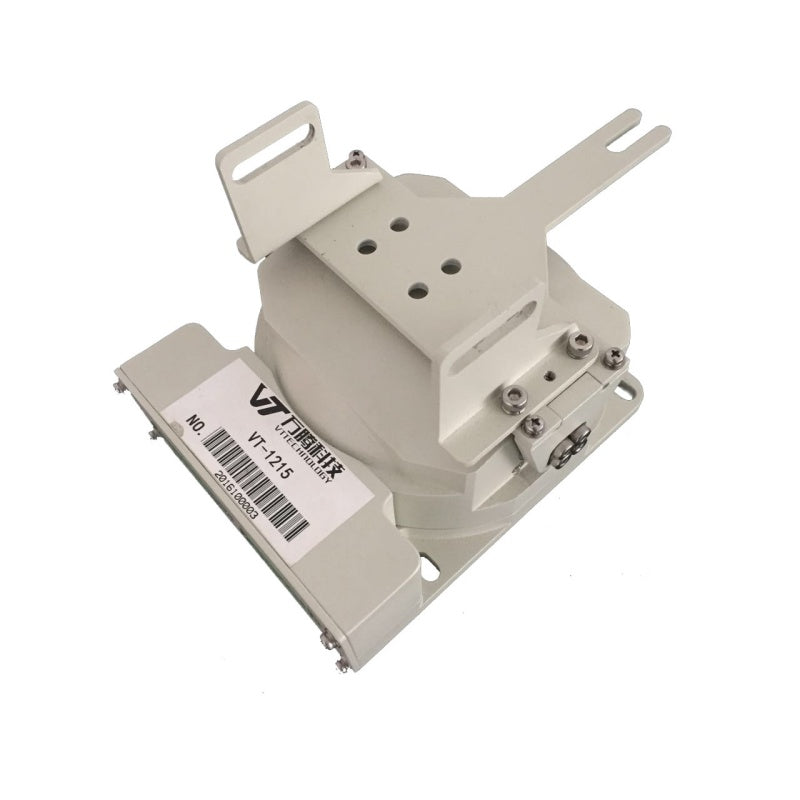

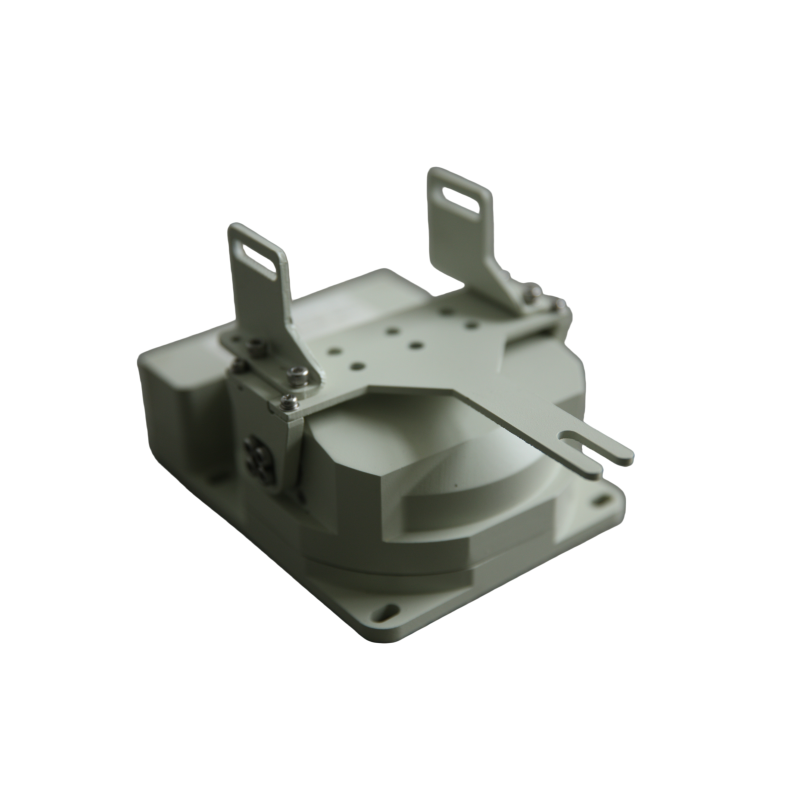

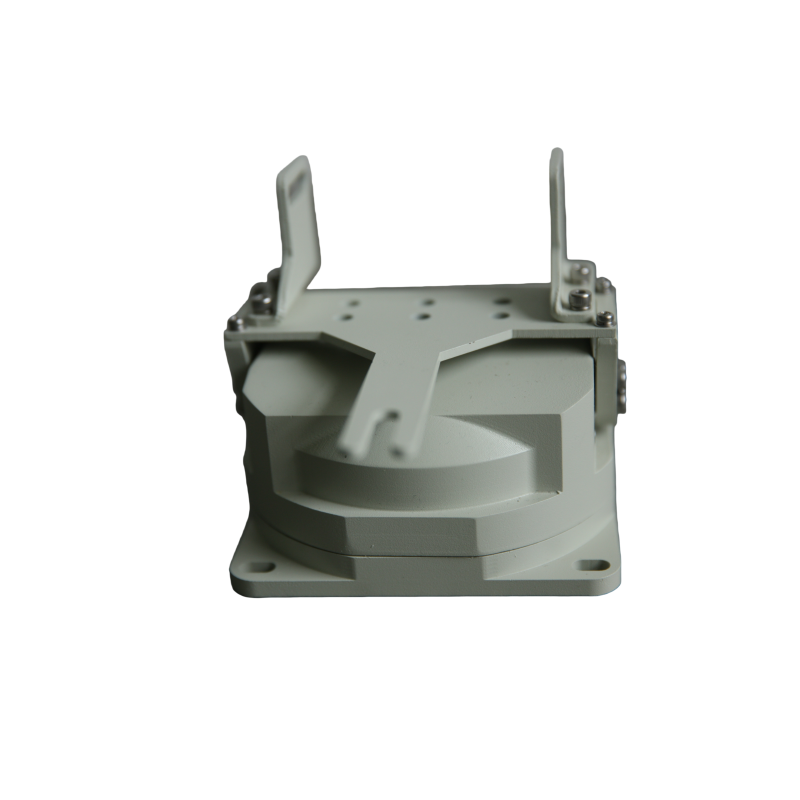

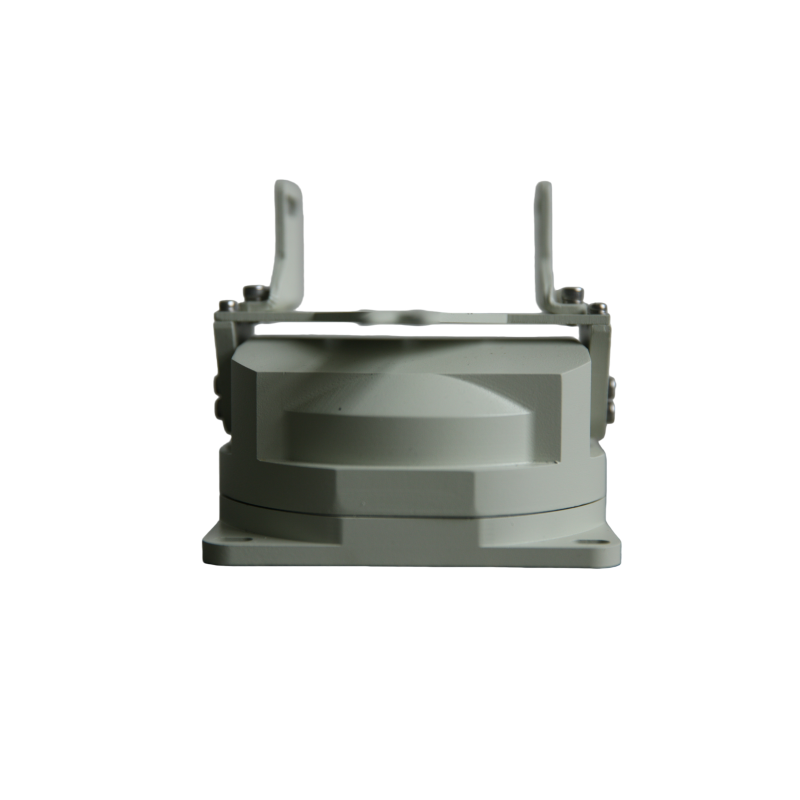

"VT-L02 Product Overview "
High repeatability, up to ±0.2°;
Built-in incremental encoder for closed-loop control;
Housing made of high-strength die-cast aluminum alloy;
Worm gear drive ensures self-locking in the event of power failure;
Optional network-specific slip ring available for 100 Mbps or 1 Gbps network transmission;
Can be equipped with a built-in serial server for network control;
Supports data feedback functions for pan/tilt position, camera focal length, and focus values;
Supports adaptive preset positions for various lenses;
Supports custom protocols;
Detailed Technical Specifications:
|
Model |
VT-L02 |
|
Rotation Speed |
Horizontal: 0.01°–20°/s; Pitch: 0.01°–12°/s (continuously variable) |
|
Rotation Angle |
Horizontal direction (left to right): +15° to -15°; Pitch direction (up to down): -15° to +2° (angle can be customized). |
|
Preset Positions |
200 (expandable) |
|
Repeatability |
±0.2° |
|
Positioning angle resolution |
0.01° |
|
Position feedback |
Supported |
|
Focal length feedback (optional) |
Supported |
|
Auxiliary Switch (Optional) |
2 sets, passive, normally open |
|
Lens Preset Positions (Optional) |
Supported; compatible with various lenses such as FUJINON, COMPUTAR, and KOWA |
|
Lens Control Speed (Optional) |
Zoom and focus control speeds are continuously adjustable |
|
Auto patrol |
8 routes, with 10 waypoints per route (expandable) |
|
Auto-return |
Automatic return time can be set from 1 to 60 minutes |
|
Auto scan |
1 route (expandable) |
|
Salt fog resistance (optional) |
After 48 hours of continuous spraying at a pH of 6.5–7.2, the machine operates normally with no visible changes to the surface |
|
Communication protocol |
PELCO_D (supports custom protocols) |
|
Communication Baud Rate |
9600 bps (configurable to 2400/4800/9600/19200 bps) |
|
Communication Interface |
RS485 (RS422/RS232/RJ45 100Mbps or Gigabit Ethernet optional) |
|
Input Power Range |
AC/DC 24 V (customizable) |
|
Operating/Standby Power Consumption |
≤30W/5W |
|
Operating temperature |
-25°C to +55°C, 90% ±3%, non-condensing |
|
Storage Temperature |
-40°C to +65°C |
|
Load |
≥2.5 kg |
|
Mounting method |
Top-loading |
|
Dimensions (L×W×H) |
150 mm × 120 mm × 70 mm |
|
Total weight |
3 kg |
|
Drive Type |
Worm gear drive |
|
Protection rating |
IP60 |
|
MTBF |
≥5000 h |
|
MTTR |
≤30 min |
