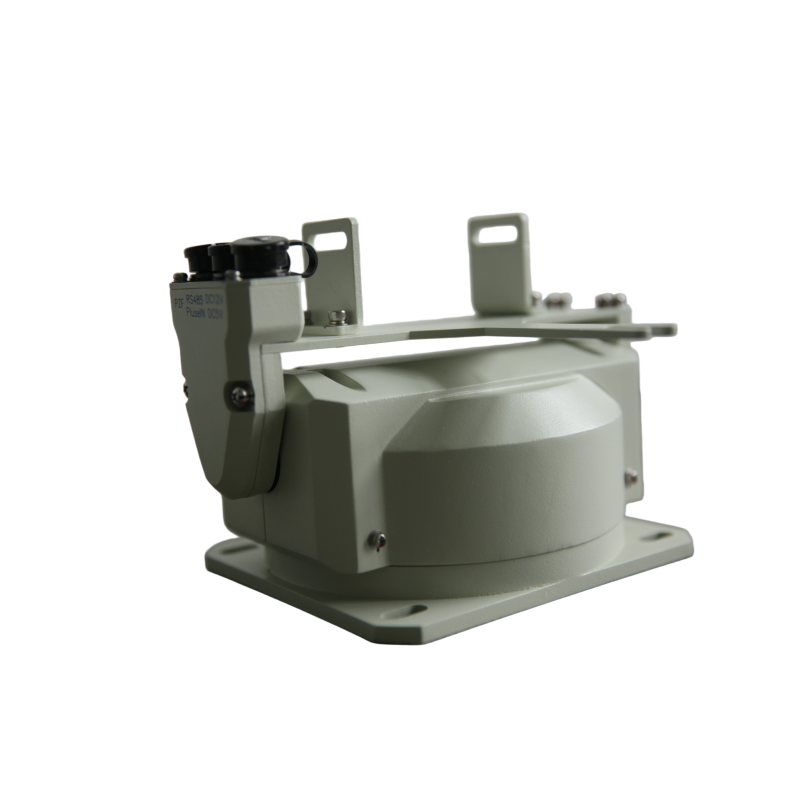

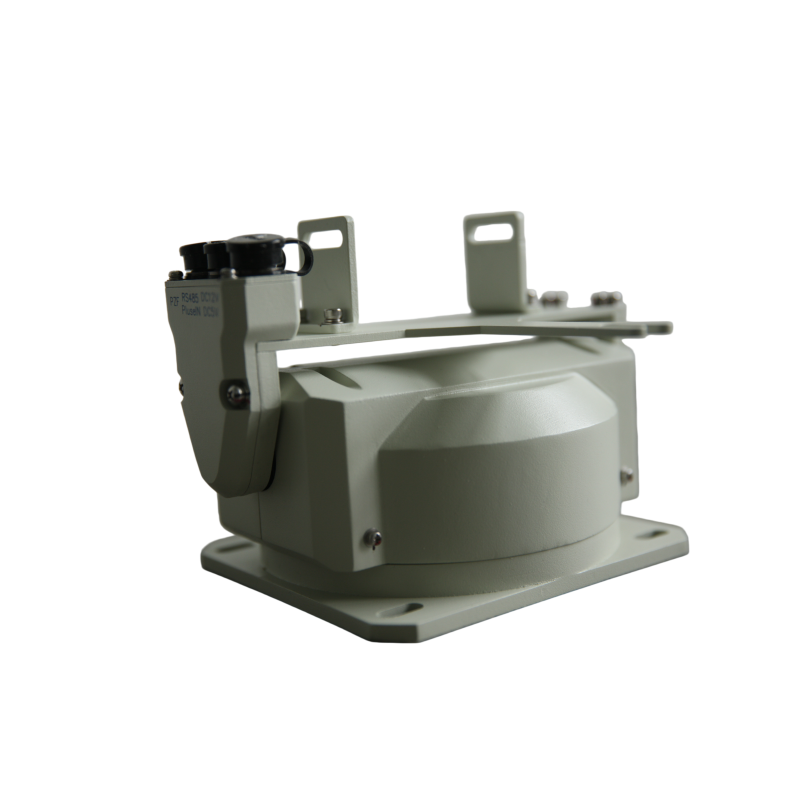

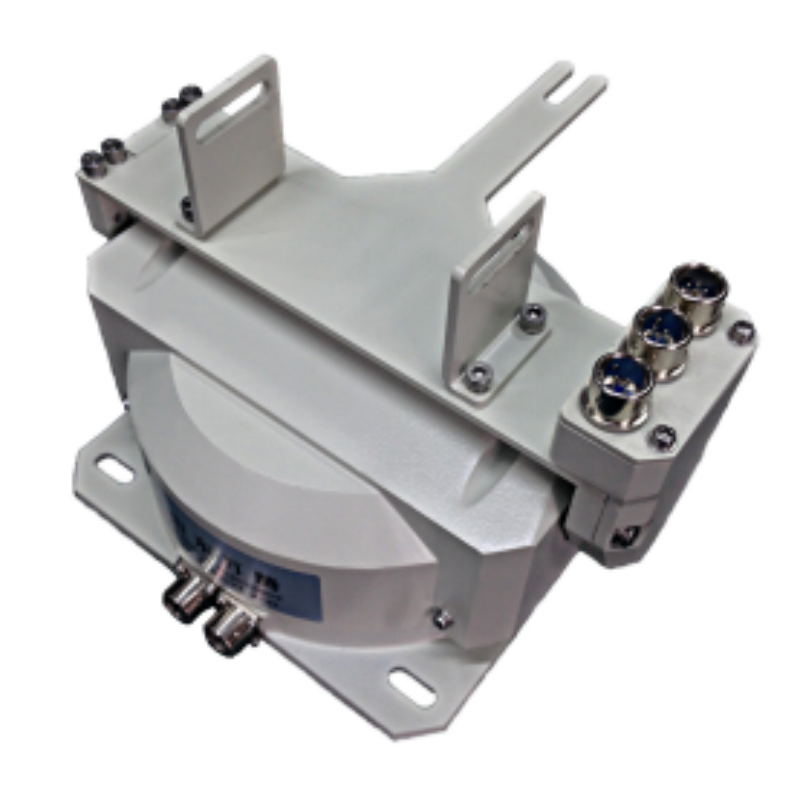

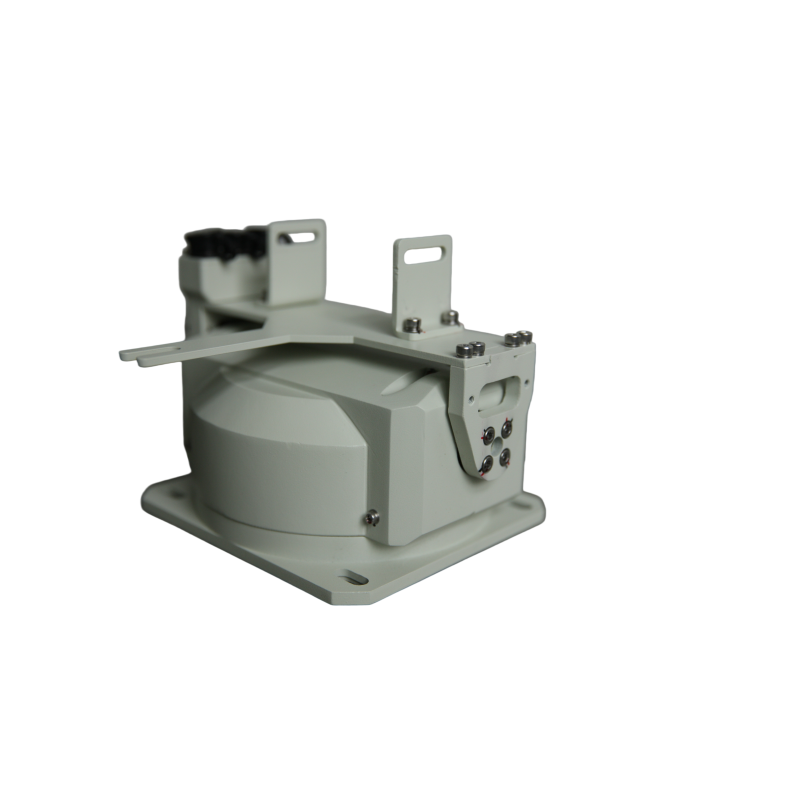

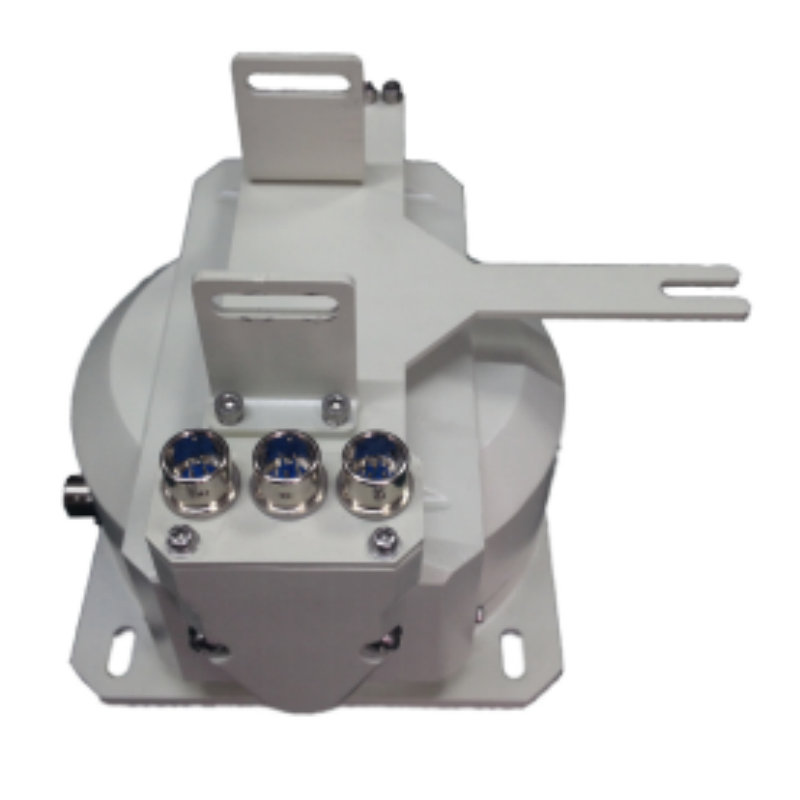

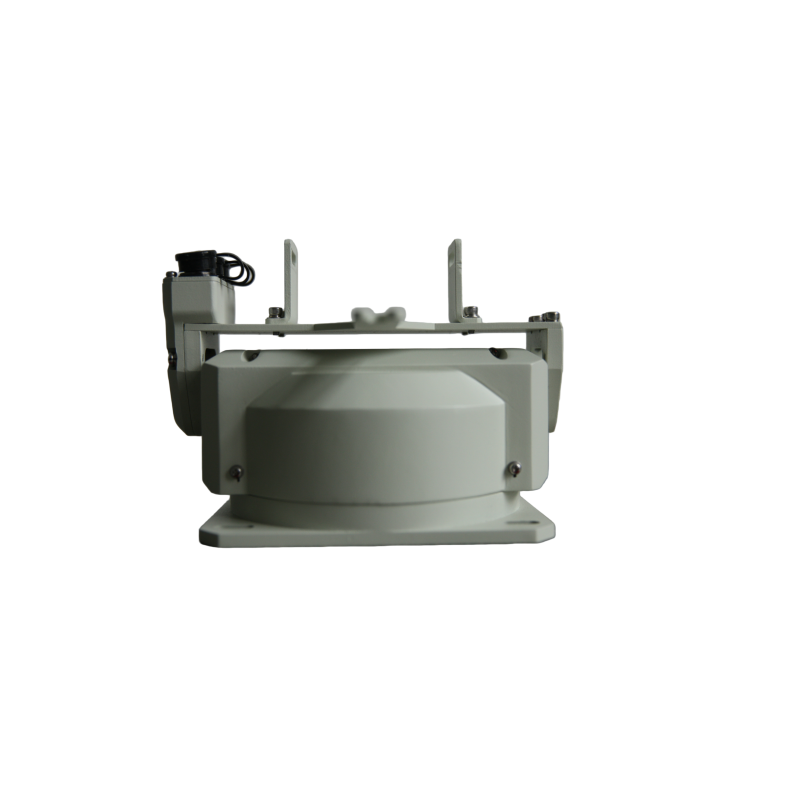

High-speed Rail Pan-Tilt Head VT-SCL03-40
Rail Transit Series Pan-Tilt Units
"Introduction to the VT-SCL03-40/SCL03/SCL02 Products "
High repeatability, up to ±0.1°;
Built-in incremental encoder for closed-loop control;
Housing made of high-strength die-cast aluminum alloy;
Worm gear drive ensures self-locking in the event of power failure;
Optional network-specific slip ring available for 100 Mbps or 1 Gbps network transmission;
Can be equipped with a built-in serial server for network control;
Supports data feedback functions for pan/tilt position, camera focal length, and focus values;
Supports adaptive preset positions for various lenses;
Supports custom protocols;
Detailed Technical Specifications:
|
Model |
VT-SCL03-40 |
VT-SCL03 |
VT-SCL02 |
|
|
Rotation Speed |
Horizontal: 0.1°–12°/s; Pitch: 0.1°–12°/s; |
Horizontal: 0.1°–12°/s; Pitch: 0.1°–8°/s; |
Horizontal: 0.1°–20°/s; Pitch: 0.1°–12°/s; |
|
|
Rotation angle |
Horizontal: +20° to -20°; Pitch: +25° to -5°; |
Horizontal: +21° to -21°; Pitch: +16° to -16°; |
||
|
Preset positions |
200 (expandable) |
|||
|
Repeatability |
±0.1° |
|||
|
Angular resolution |
0.01° |
|||
|
Position feedback |
Supported |
|||
|
Focal length feedback (optional) |
Supported |
|||
|
Auxiliary Switch |
2 sets, passive, normally open |
|||
|
Lens preset positions (optional) |
Supported; compatible with various lenses such as FUJINON, COMPUTAR, and KOWA |
|||
|
Lens control speed (optional) |
Zoom and focus control speeds are continuously adjustable |
|||
|
Auto patrol |
8 routes, with 10 waypoints per route (expandable) |
|||
|
Auto-return |
Automatic return time can be set from 1 to 60 minutes |
|||
|
Auto scan |
1 route (expandable) |
|||
|
Salt fog resistance (optional) |
After 48 hours of continuous spraying at a pH of 6.5–7.2, the machine operates normally with no visible changes to the surface |
|||
|
Communication protocol |
PELCO_D (PELCO_D/PELCO_P configurable) |
|||
|
Communication Baud Rate |
9600 bps (2400/4800/9600/19200 bps configurable) |
|||
|
Communication Interface |
RS485 (RS422/RS232/RJ45 100Mbps or Gigabit Ethernet optional) |
|||
|
Input Power Range |
AC/DC 24 V (customizable) |
DC 15–28 V (customizable) |
||
|
Operating/Standby Power Consumption |
≤30W/3W |
|||
|
Operating Temperature |
-40°C to +55°C, 90% ±3%, non-condensing |
-25°C to +55°C, 90% ±3%, non-condensing |
||
|
Storage Temperature |
-40°C to +65°C |
|||
|
Load |
≤3 kg |
|||
|
Mounting method |
Top-loading |
|||
|
Dimensions (L×W×H) |
160 × 150 × 100 |
207×180×172 |
191×122×113 |
|
|
Total Weight |
5 kg |
4.5 kg |
≤3 kg |
|
|
Drive Type |
Worm gear drive |
|||
|
Protection rating |
IP60 |
|||
|
MTBF |
≥5000 h |
|||
|
MTTR |
≤30 min |
|||
